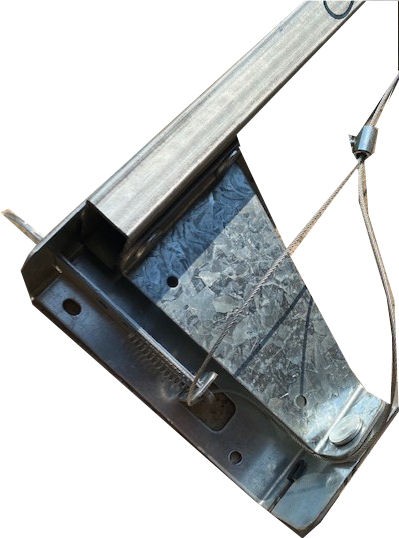

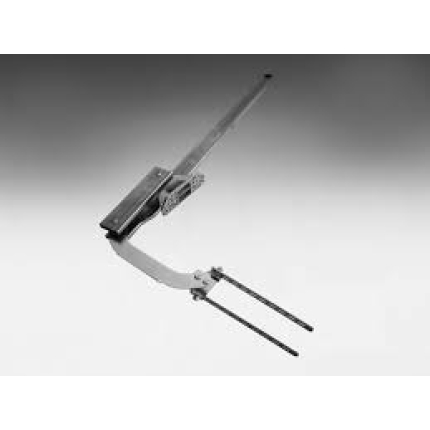

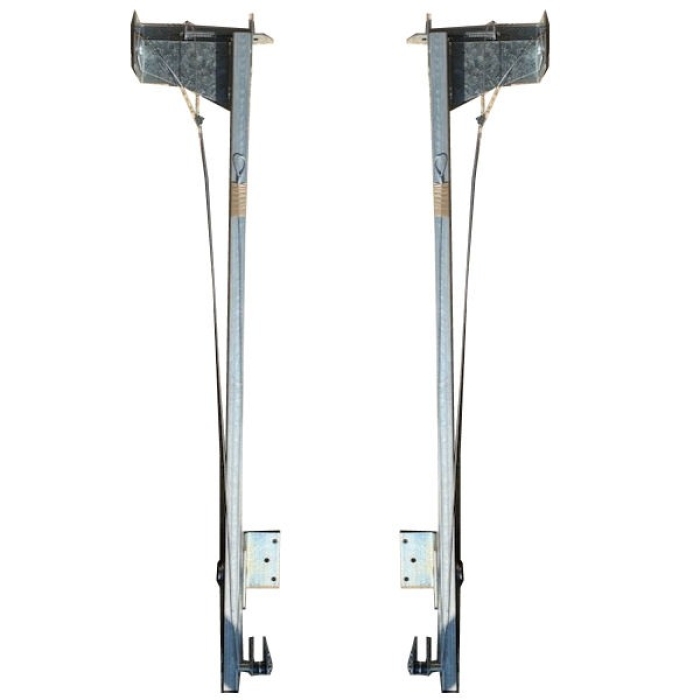

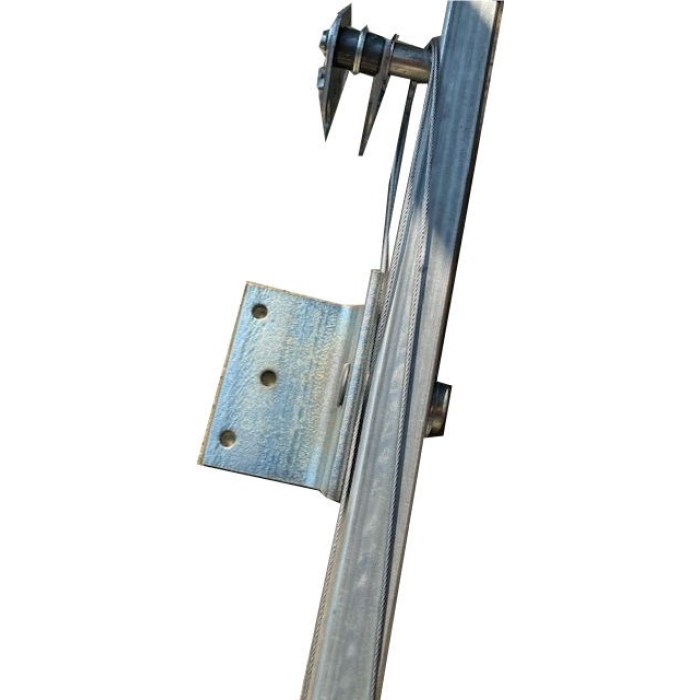

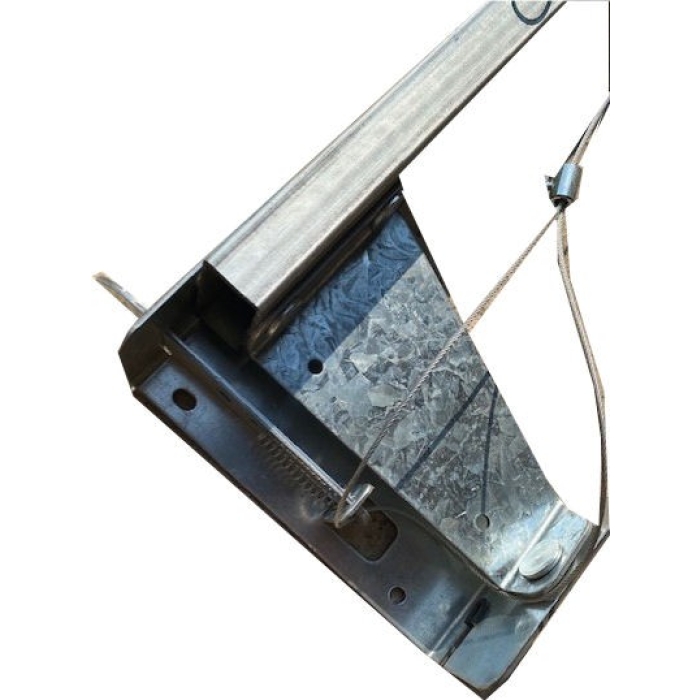

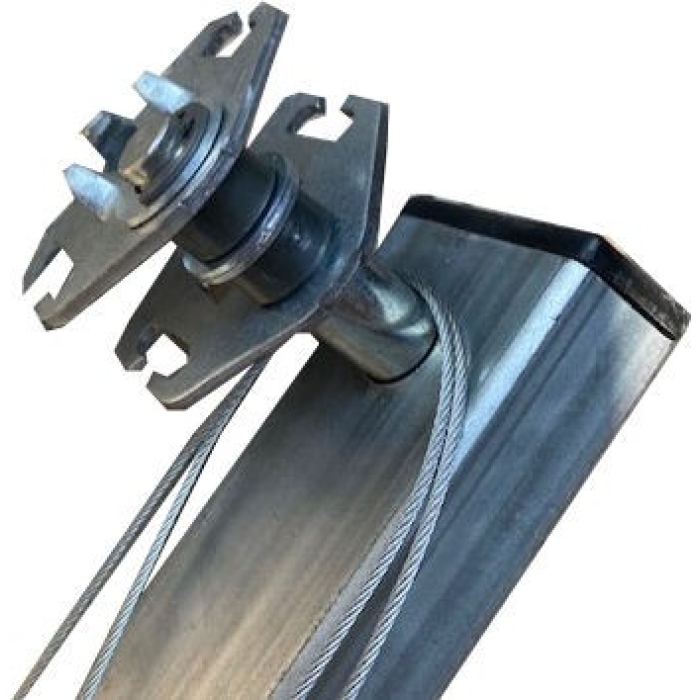

Wessex Double Width Door Slideaway Lift Pivot Link Arms – Multi Spring
£149.96 (INC VAT - £179.95)
Wessex replacement Lift Pivot Arms to suit double-width garage doors Suitable for Cardale / Wessex Retractable (Slideaway) Doors, fitted around 2005 onwards – usually fitted from doors over 8ft wid…
Description

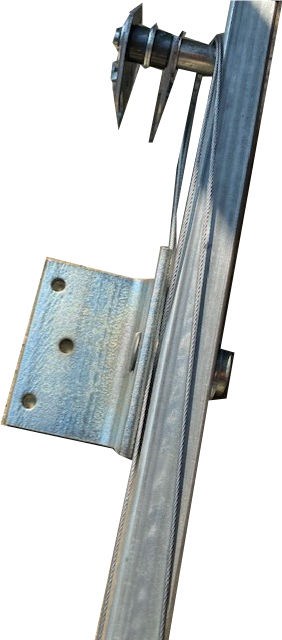

- Wessex replacement Lift Pivot Arms to suit double-width garage doors
- Suitable for Cardale / Wessex Retractable (Slideaway) Doors, fitted around 2005 onwards – usually fitted from doors over 8ft wide. Also fitted to some Wessex and Apex double doors.
- If your arms look the same then they should fit. There are 2 types, this set is for the later version which had multi springs each side. If you require the older version which has one spring each side, please see our related products area below.
THEY ARE NOT INTERCHANGEABLE - The arms are sold as singles (Right and Left handed from being stood inside the garage looking out). Please select Right or Left hand or you can purchase a pair from the options choice.

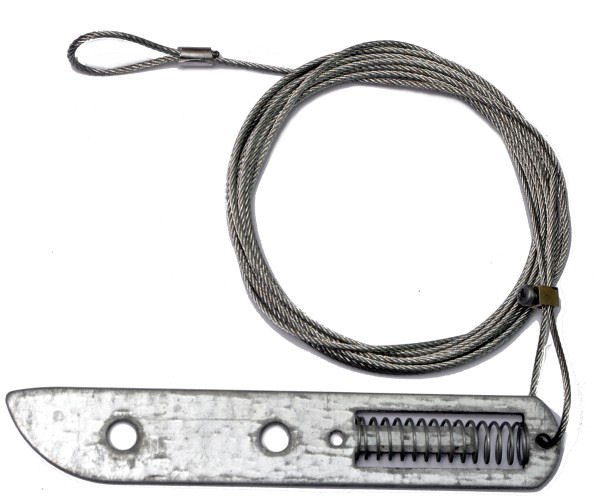

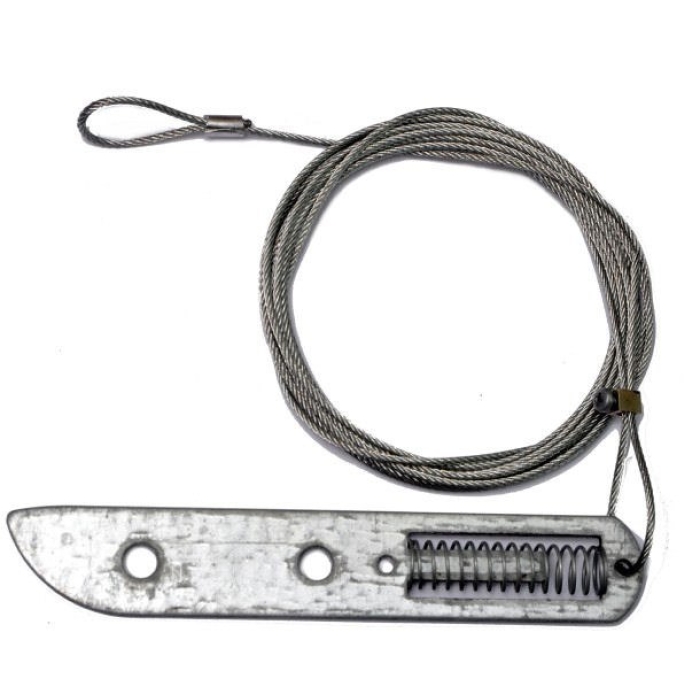

- Comes with the latches and cables
- Genuine Parts
- Fitted on DOUBLE-WIDTH doors manufactured around 2005 onwards
- Lift Arm Sizes;
Overall Length 1043mm
Pivot to Pivot (centre) 830mm
Box Section 50mm x 25mm (2″ x 1″)
Pivot to Spring Pin 172mm - Please see my website for other associated parts.
