Name: Roller Shutter Door Low Level Emergency Override External Release Kit - 45 or 90 degree option
Brand: Roller Doors
SKU: Low Level External Release Kit - Budget
Availability: InStock

Roller Shutter Door Low Level Emergency Override External Release Kit – 45 or 90 degree option

£95.79 (INC VAT - £114.95)

Weight

4800 kg

Roller Shutter Door Low Level Emergency Override External Release Kit
The kit is fitted to roller shutter doors which don’t have another entrance to the garage. In the event of a power cut or motor failure, this kit allows the winding of the shutter using a series of joints and adaptors which are accessed via a hole in the wall which has a lock on it, and when unlocked, the winding handle is pushed through and connected to the release kit.
Suitable for walls 500mm thick as standard
Comes with instructions
If you require parts of this kit, such as the tube and lock, external handle or inner winding components, please see our related products area below.
We sell a few versions of this kit. This particular kit is a budget version and made up of more components. We do another kit which is a more expensive kit and made up of less parts making it easier to fit. Please see our related products area below for the other versions.
We stock roller shutter spares – please see our website for various products.

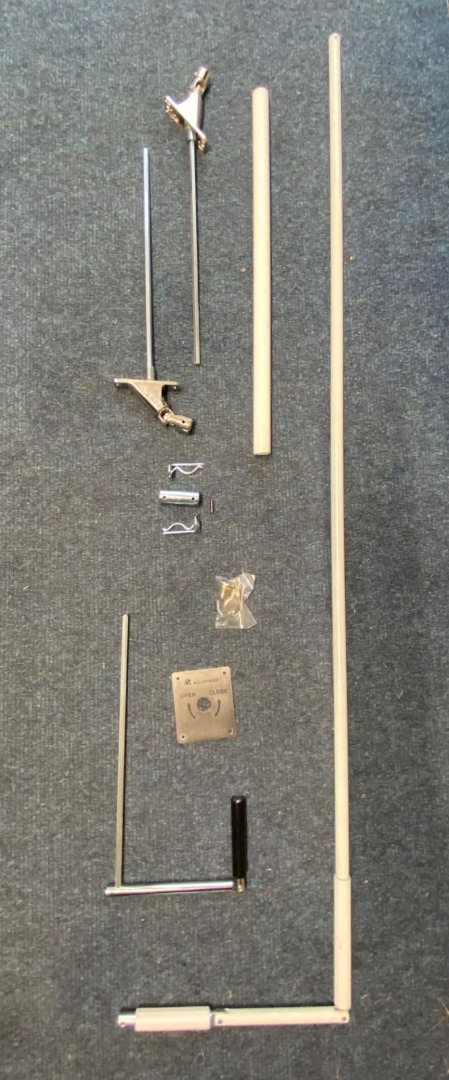

Please note, the last image is for information purposes only to show how this product works, it is not the same product and the bars are longer than shown. Image 1 shows the 45 degree kit, Image 2 shows the 90 degree kit, image 3 shows the difference in the 45 and 90 degree connectors.

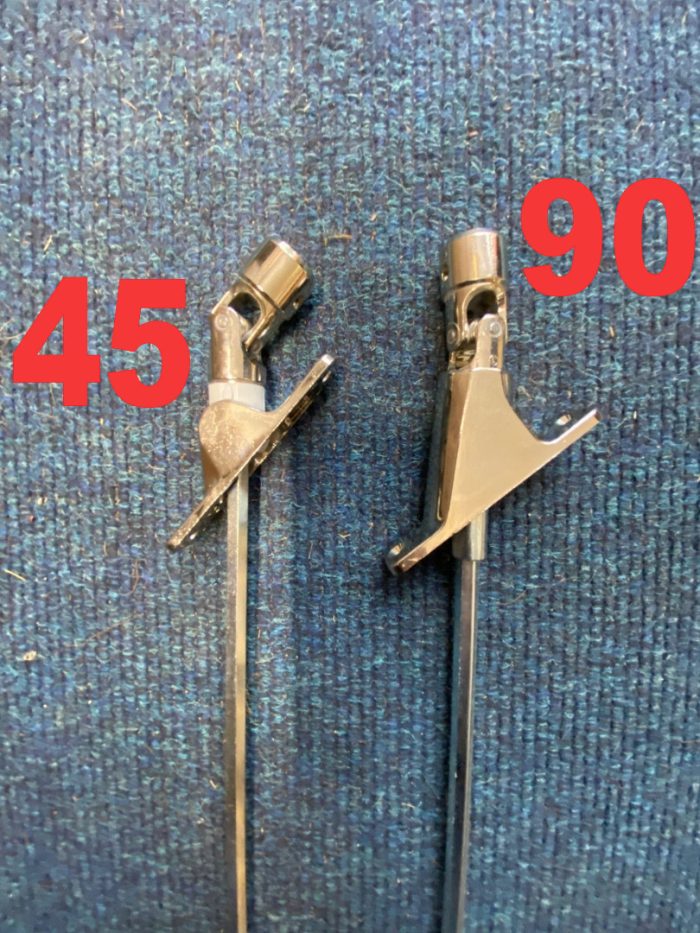

There are 2 options available – both kits are the same apart from the top motor connector is available as a 45 or 90 degree connector – see image 3 which shows these. If you look at your tube motor and see how it is fitted – the motor gearbox drive will either be mounted on a 0, 45 or 90 degree angle. The 0 uses the 45 degree connector. Please select which kit you require from the drop-down option below.
Full Kit consists;
Hex bar & Motor Drive
Main inner drive tube (45 or 90 degree – select choice) & inner handle
Lower hex bar with wall mounting plate & universal joint
Plastic wall tube
Drive connector
External Handle
Clips
Lock, keys & wall plate
