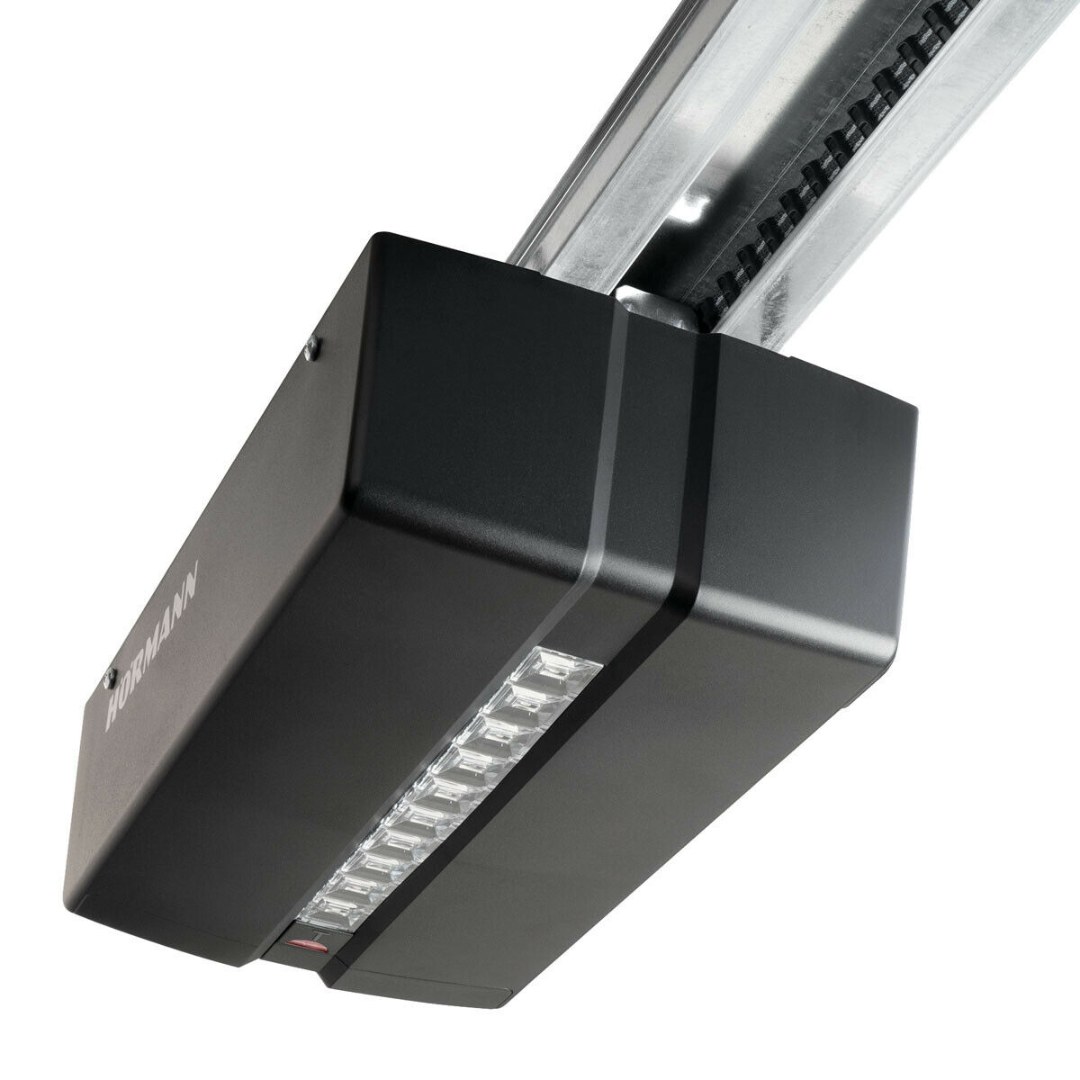

Hormann Promatic Canopy Door Operator Head & Rail Kit

Hormann ProMatic Canopy Operator BiSecur – NEW Series 4 Head & Rail Kit – Please note the Hormann kit has been discontinued, so Garador branded kit will be sent instead (the same kit but Garador name on the motor head)

BENEFITS OF NEW PROMATIC CANOPY OPERATOR:

Unrestricted Drive Through Height

The original canopy bow-arm design reduced drive through height by 140mm. When in the open position, the activating arm on the ProMatic canopy operator sits behind the top edge of the door, giving unrestricted drive through height.

Quick and Easy to Install

The new ProMatic canopy operator is quick and easy to install. The activating arm is attached to the shuttle within the boom, guide wheels help keep the device running smoothly and the torsion spring requires minor adjustment of 2 extra turns.

Made for Hormann Canopy Doors

The unique ProMatic canopy operator makes automating canopy doors simple and reliable.  The activating arm is not sold separately.

The ProMatic is a reliable and secure automatic operator that comes complete with two 4 button hand transmitters, so you can open your garage door without having to leave the comfort of your car. This operator complies with the latest European safety standards, is maintenance free and has a super smooth quiet door action. It is also highly secure with an integral anti-burglar device as standard. The ProMatic is perfectly matched with Hormann up & over canopy garage doors and are prepared for easy installation.

• Comes with two 4 button hand transmitters (black) as standard
• For canopy garage doors (
• Simple to operate
• Soft start and soft stop
• Automatic Safety Reversal
• Automatic locking to prevent forced entry
• Remote status query feature indicates whether your garage door is open or closed
• Bi-directional radio technology utilised for better security and a more reliable signal that can be used over a longer distance
• Integral light
• Streamlined plastic cover
• Hormann Part Code: 4510126 / 435210

The advantages at a glance

– unrestricted drive through height
– no unsightly arm fitted to the rear of the door
– no additional modifications to your existing door
– quick and easy to retrofit

ProMatic Operator Specs

Cycles per day/hour – 12/5
Peak force – 750 N
Max. opening speed – 14 cm/s
Max. door width – 5000mm
Max. door surface – 11.25m²
