Description

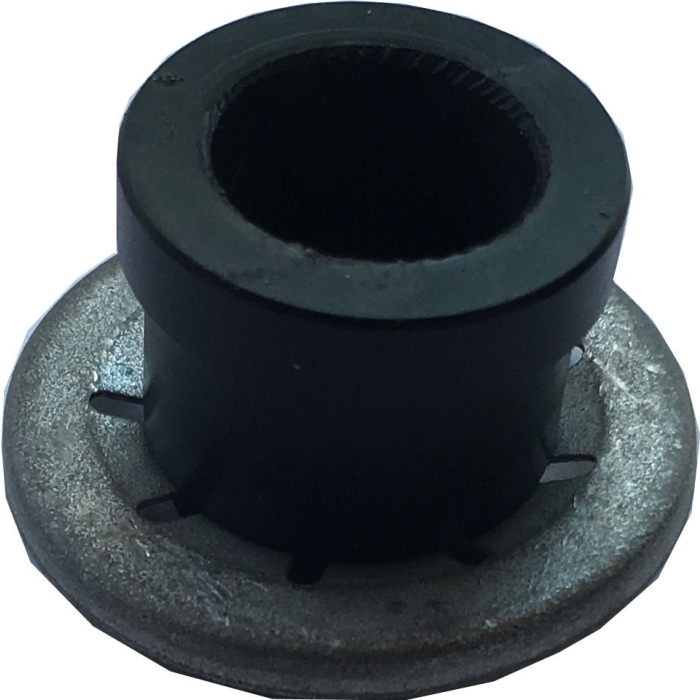

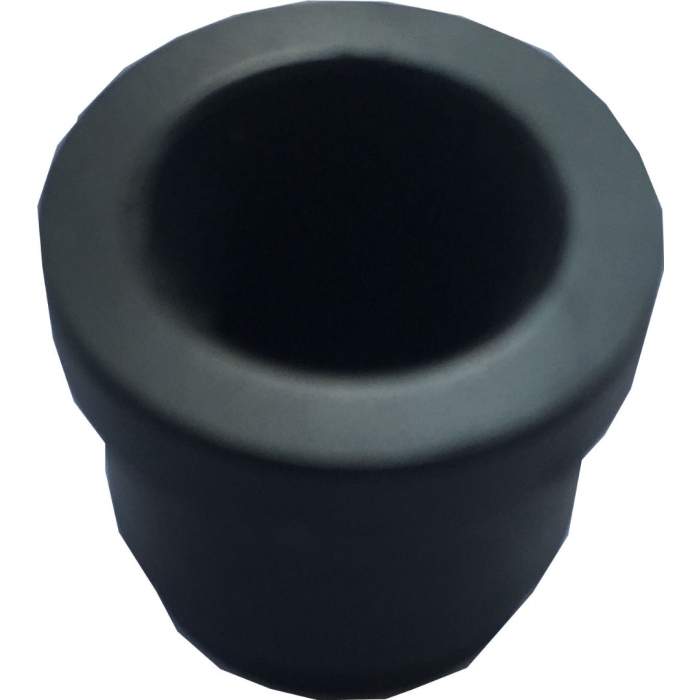

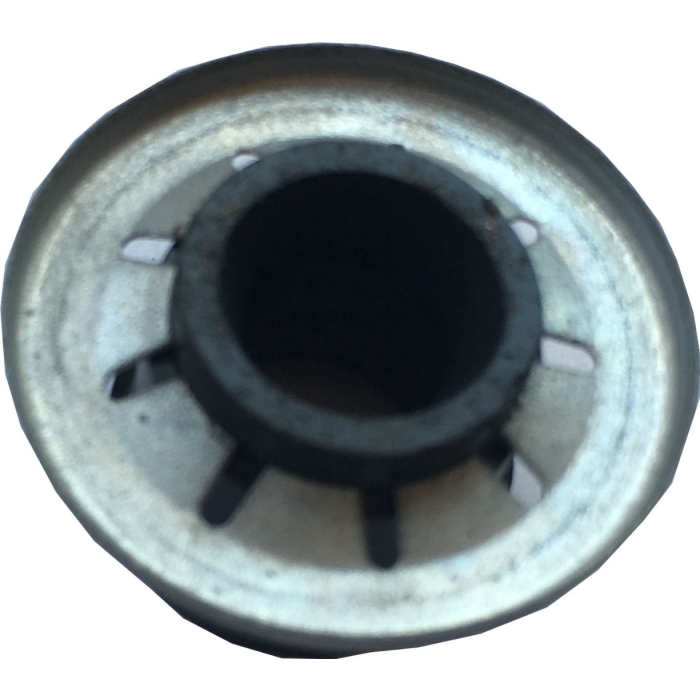

- Brand New replacement Bush & Retaining Clip for Henderson Lift Arms (link arms)
- Suitable for pre-1992 retractable (also known as slideaway) Henderson DOUBLE WIDTH Garage Doors
- Fits in the lifting arm at the top where the spring hook attaches (the bush is used as a swivel to protect the 2 metal surfaces from touching
- The sizes are;
22mm Long
25mm Outer diameter
20mm Outer diameter
16mm Internal diameter
11mm Internal diameter - The lifting arms are generally identifiable as black
- These are obsolete parts – we are the only company to sell these
- They will fit other lift arms from the Henderson range, but you will need to enlarge the hole in the arm slightly where the spring fits to accommodate the new bush
- If you require the bushes for the Henderson spring shaft (which are a lot smaller) please see my related products area at the bottom of the page
- Item is sold as 1 x Bush & 1 x Retaining Clip. If you require bushes for both your lifting arms, then please purchase 2.
