Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Garador Lift Arm Nylon Bush - Canopy Doors
£2.38 (INC VAT - £2.86)
Garador Lift Arm Repair Kit - Canopy Doors
£4.96 (INC VAT - £5.95)

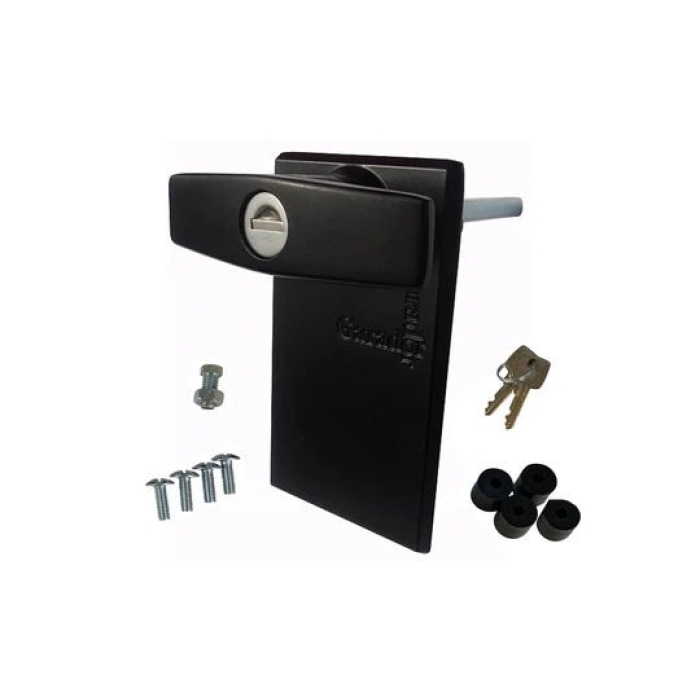

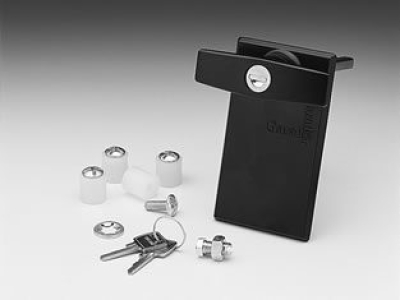

Genuine Garador T-Handle Lock Black
£65.79 (INC VAT - £78.95)
Genuine Garador T-Handle Garage Door Lock Suitable for Garador and Catnic doors fitted 1984 – 1999 Fits Mk3c, Mk4, C, F, R, DC & DR Doors, as Old Garador & Catnic Part number: S1731040-10, as New G…
Description
- Genuine Garador T-Handle Garage Door Lock
- Suitable for Garador and Catnic doors fitted 1984 – 1999
- Fits Mk3c, Mk4, C, F, R, DC & DR Doors, as Old Garador & Catnic Part number: S1731040-10, as New Garador Part number: 1191
- They originally made 3 types of lock, the one above, a stumpy T-handle and a lever lock, this lock is a replacement as the previous 2 are no longer available
- The version with the Euro cylinder in is also obsolete. This lock will fit into the holes, but will need some minor modifications to work the lock mechanism to the rear, such as; a universal cam & cable – in the related products area below
- Spindle 100mm, which can be cut to suit
- Back Plate is 2 1/2″ (6.5cms) x 4 1/2″ (11cms)
- 10mm spigots (bolt stumps) which are 45mm apart widthways and 77mm apart lengthways
- Comes complete with 2 Keys, fixing screws, spacers, starlock washer, split bolt and nut
