Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Garador ORIGINAL R / FR / MK3R Garage Door Spring
£78.29 (INC VAT - £93.95)
Select AP200 (AP350/500) Garage Door Spring
£34.96 (INC VAT - £41.95)
Garador ORIGINAL Retractable Garage Door Springs (SINGLE WIDTH DOOR)
£47.46 (INC VAT - £56.95)
When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.Garador spring block assembly to suit Retractable & Re…
Description
- When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.

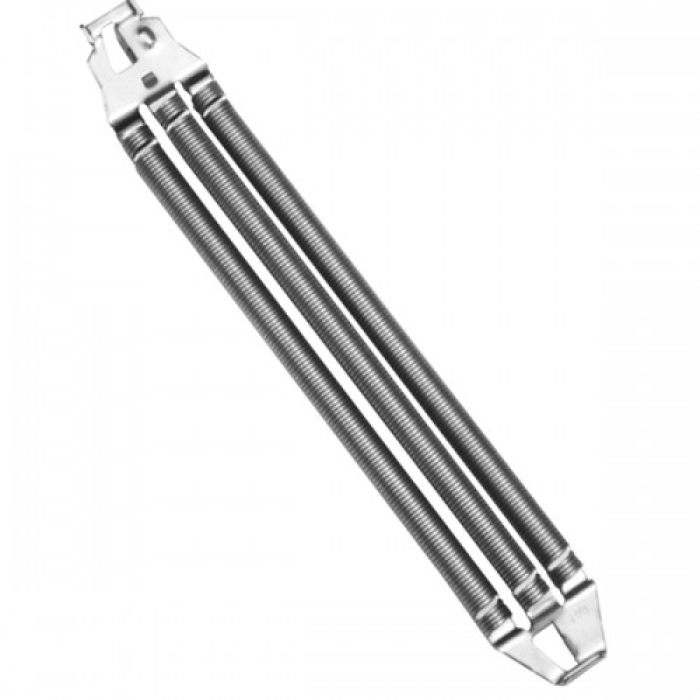

- Garador spring block assembly to suit Retractable & Retractable Plus single width garage doors (manufactured after 2002) which have a block of 3 springs either side of the door.
- This item is sold as one single spring assembly which consists of 3 springs and top and bottom brackets. They are NOT handed.
- There are 4 variations, please identify by using our spring chart. Check out your existing springs for the number which will be stamped on the end of the original bracket;
Spring 001: (current part no: 52)
Spring 002: (current part no: 53)
Spring 003: (current part no: 54)
Spring 004: (current part no: 1226)Please note, some of the double-width doors have a code of 001, 002 or 003. In effect, on these doors, they use 2 single-width clusters per side to make 6 springs.
- Wire Diameter 1.5mm
- Number of Coils 130
- Overall Diameter 14mm
- Length Excluding Hooks 330mm
- Please note, the 004 springs are longer – approx 445mm long across the coils
- If you need any help identifying your door or spring required, please give us a call
