Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Garador ORIGINAL R / FR / MK3R Garage Door Spring
£78.29 (INC VAT - £93.95)
Select AP200 (AP350/500) Garage Door Spring
£34.96 (INC VAT - £41.95)
Garador ORIGINAL Retractable Garage Door Springs (DOUBLE WIDTH DOOR)
£59.96 (INC VAT - £71.95)
When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.Garador spring block assembly to suit Retractable & Re…
Description
- When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.
- Garador spring block assembly to suit Retractable & Retractable Plus double width garage doors (manufactured after 2004) which have a block of 6 springs either side of the door.
- This item is sold as one single spring assembly which consists of 6 springs and top and bottom brackets. They are NOT handed.

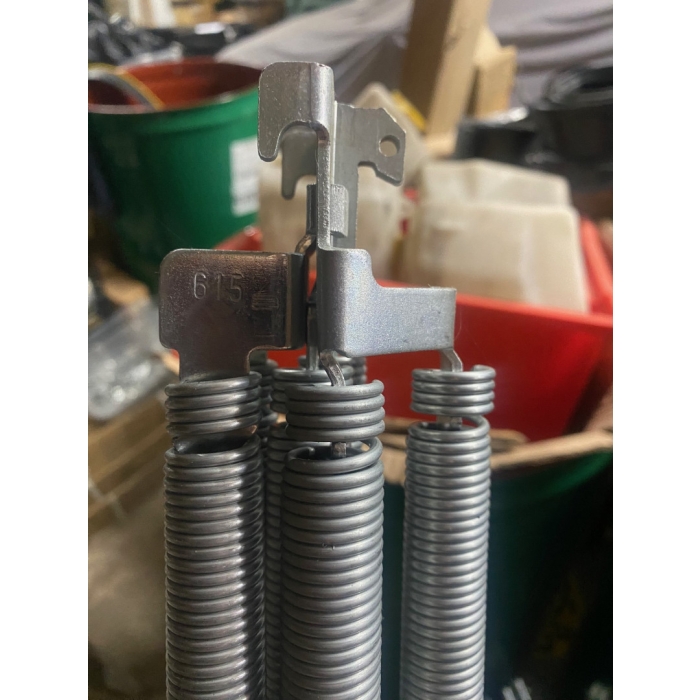

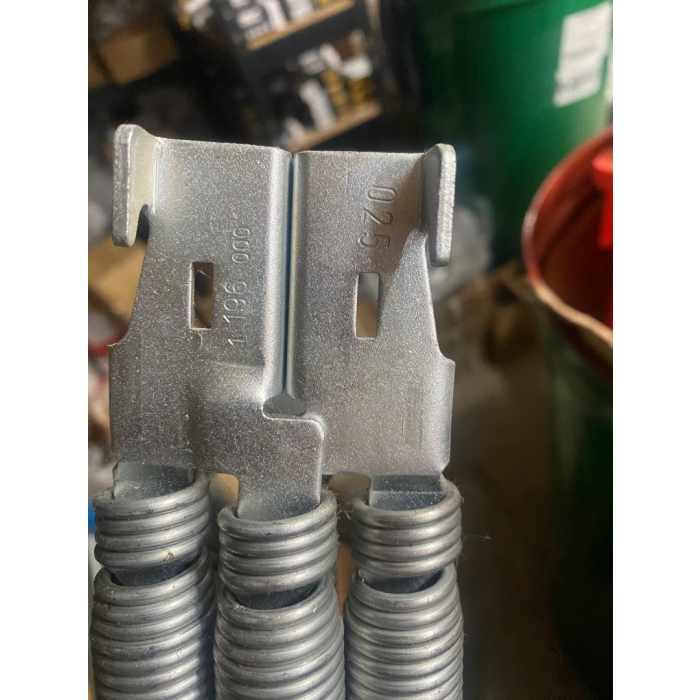

- There are 6 variations, please identify by using our spring chart. Check out your existing springs for the number which will be stamped on the end of the original bracket (see our images for some examples of where this code can appear);
Spring 4er 025: (current part no: 1946)
Spring 4er 032: (current part no: 1945)
Spring 023: (current part no: 4346)
Spring 615: (current part no: 1943) – Now discontinued, contact us for more information/advice.
Spring 621: (current part no: 1944) – Now discontinued, contact us for more information/advice.
Spring 015: (current part no: 4343)
Spring 012: (current part no: 1228)
Please note, some of the double-width doors have a code of 001, 002 or 003. If yours have this code, you will need to click the related products area below for the ‘Single-width door’ variant. In effect, on these doors, they use 2 single-width clusters per side to make 6 springs. - Wire Diameter 1.5mm
- Number of Coils 130
- Overall Diameter 14mm
- Length Excluding Hooks 330mm
- If you need any help identifying your door or spring required, please give us a call

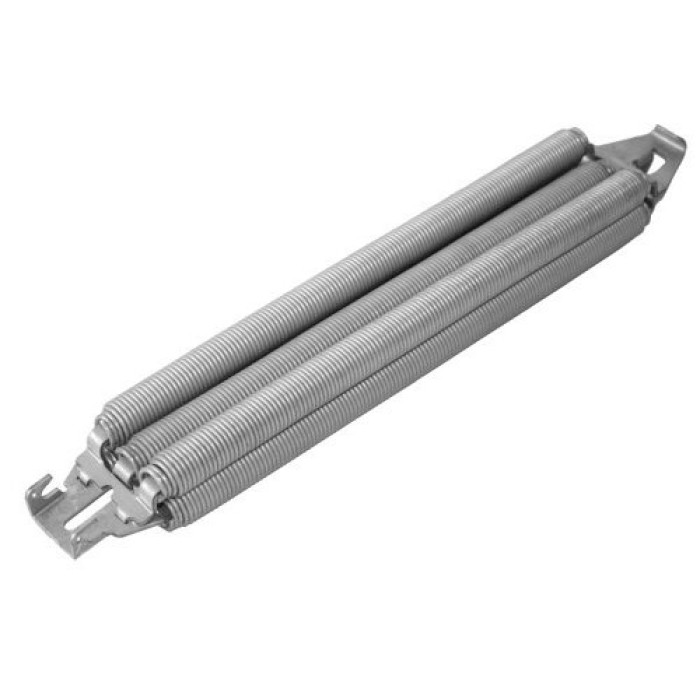

- PLEASE NOTE, THE MAIN IMAGE SHOWS A SPRING CLUSTER OF 6 SPRINGS. SOME OF THESE SPRINGS HAVE A CLUSTER OF 4 OR 5 SPRINGS – THE IMPORTANT PART IS THAT YOU ORDER THE SAME CODE AS YOU CURRENTLY HAVE IN ORDER TO GET THE SAME CLUSTER AND QUANTITY OF SPRINGS
