Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Starfleet Blue Garage Door Spring
£32.46 (INC VAT - £38.95)
Garador MK3C Garage Door Spring Box
£104.96 (INC VAT - £125.95)

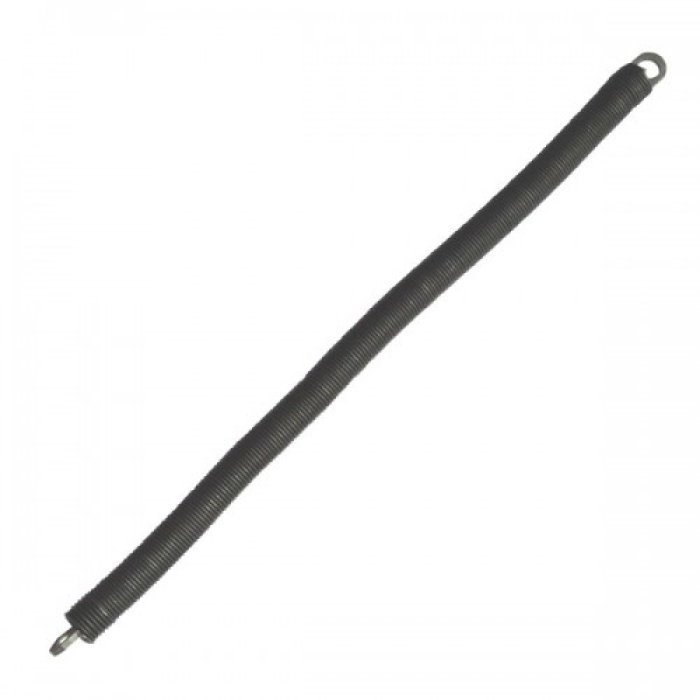

Garador ORIGINAL R / FR / MK3R Garage Door Spring
£78.29 (INC VAT - £93.95)
Garador Original R/FR type spring is to suit Retractable doors with one spring down either side. These doors have horizontal tracks, when the door is open it goes in the garage almost all the way….
Description
- Garador Original R/FR type spring is to suit Retractable doors with one spring down either side. These doors have horizontal tracks, when the door is open it goes in the garage almost all the way. These springs are also a suitable replacement spring for Garador Mk3R doors
- When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.
- The original MK3R springs are now obsolete. R type springs are used instead. The substitute springs are a little longer than the originals, so to allow for this you should rotate/lower the bottom spring bracket and then re-fix it.
- There are 12 varying strengths of this spring. They are identified by the number stamped on one end of the spring, or by using our spring chart;
Spring S108-901: (current part no: 4763)
Spring S108-903: (current part no: 4764)
Spring S108-905: (current part no: 4765)
Spring S108-907: (current part no: 4766)
Spring S108-909: (current part no: 4767)
Spring S108-911: (current part no: 4768)
Spring S108-913: (current part no: 4769)
Spring S108-915: (current part no: 4770)
Spring S108-921: (current part no: 4774)
Spring S108-923: (current part no: 4775)
Spring S108-925: (current part no: 4776)
Spring S108-927: (current part no: 4777) - Wire Diameter N/A
- Number of Coils 182
- Overall Diameter 28mm
- Length Excluding Hooks 610mm

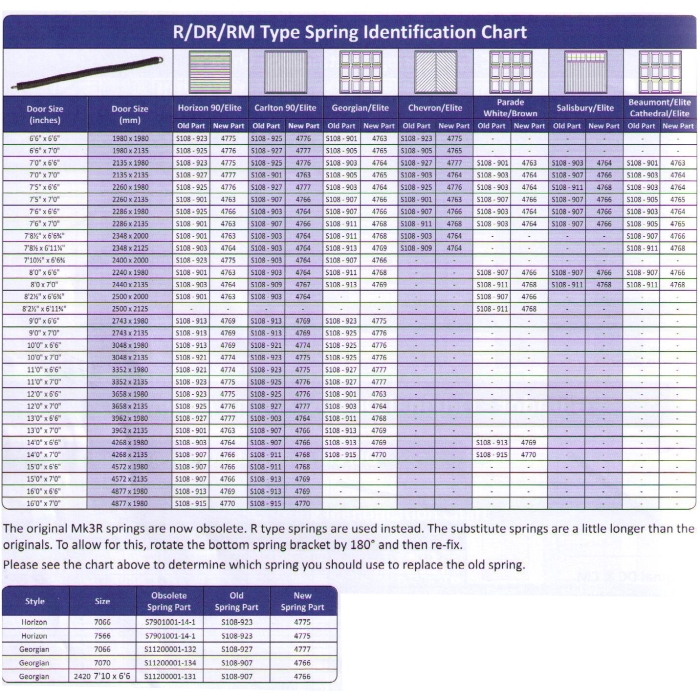

- Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door. The spring number is usually stamped into one end of the spring
