Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Garador Folding Sectional Garage Door Spring Tension Bars
£16.63 (INC VAT - £19.96)
Garador Lift Arm Washer - Canopy Doors
£1.33 (INC VAT - £1.60)
Garador Lock Mechanism Body & Cylinder
£36.63 (INC VAT - £43.96)
Garador Lock Body Mechanism complete with cylinder (select size required from options below using the drop-down box) Fitted to Garador garage doors from 2002 onwards There are 5 options available. …
Description
- Garador Lock Body Mechanism complete with cylinder (select size required from options below using the drop-down box)
- Fitted to Garador garage doors from 2002 onwards

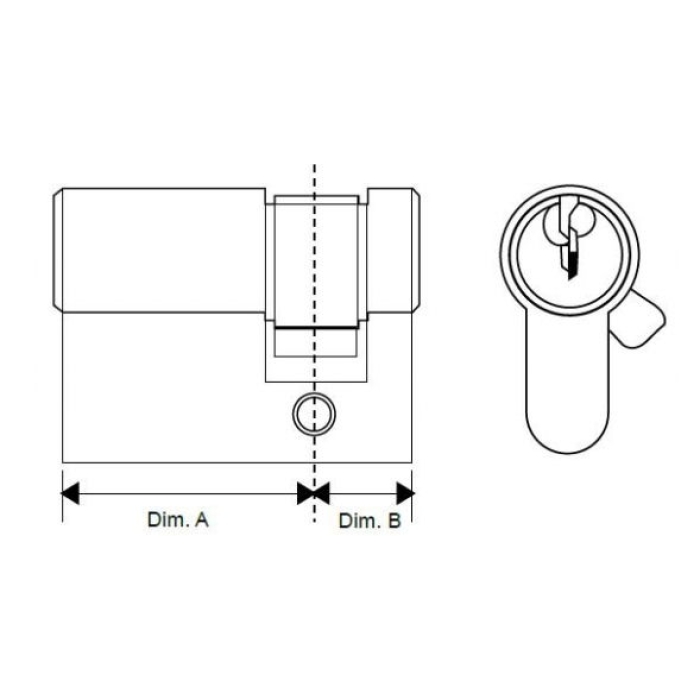

- There are 5 options available. You can either measure your existing lock barrel, or check the arms on your existing lock mechanism for one of the following codes;
Garador lock no. 1019001 – (Garador Part No. 204) – 40mm barrel
Current part no: 204. Suitable for Carlton, Horizon, Salisbury, Chevron & double steel doors. (Cylinder length: 30.5 + 10)
Garador lock no. 1019102 – (Garador Part No. 202) – 45mm barrel
Current part no: 202. Suitable for all Georgian, Beaumont, Cathedral, Vertical Cedar and Cavendish doors. (Cylinder length: 35 + 10)
Garador lock no. 1019103 – (Garador Part No. 203) – 50mm barrel
Current part no: 203. Suitable for Tudor, Seymour, Wolsey, Shaftsbury and single GRP doors. (Cylinder length: 40 + 10)
Garador lock no. 1019104 – (Garador Part No. 2078) – 65mm barrel
Current part no: 2078. Suitable for Sandhurst, Chevron Cedar, Kingsbury, Barrington, Bosworth and double GRP doors. (Cylinder length: 55.5 + 10)
Garador lock no. 1019105 – (Garador Part No. 1796) – 60mm barrel
Current part no: 1796. Suitable for all GRP and timber doors. (Cylinder length: 50.5 + 10) - The older lock mechanisms with a code of 1819001 are no longer available – you have to replace with a 1019001 and swap the backplate of the lock mechanism over as it has changed slightly.
- Please see our other products for many other Garador spares
