Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Cardale Thermaglide Genuine PDT Roller Door Control Buttons Ribbon
£12.46 (INC VAT - £14.95)
Garador Folding Sectional Tension Spring Assembly
£149.96 (INC VAT - £179.95)
Ellard Genesis Roller Shutter Remote Control Unit & 2 Handsets – With Black Handsets
£36.63 (INC VAT - £43.96)
Ellard Genesis Control Unit complete with 2 x handsetsFor use with roller shutters which have a tube motor with 4 wires in the motor cable (Live, Earth, Up, Down)Comes complete with two transmitter…
Description

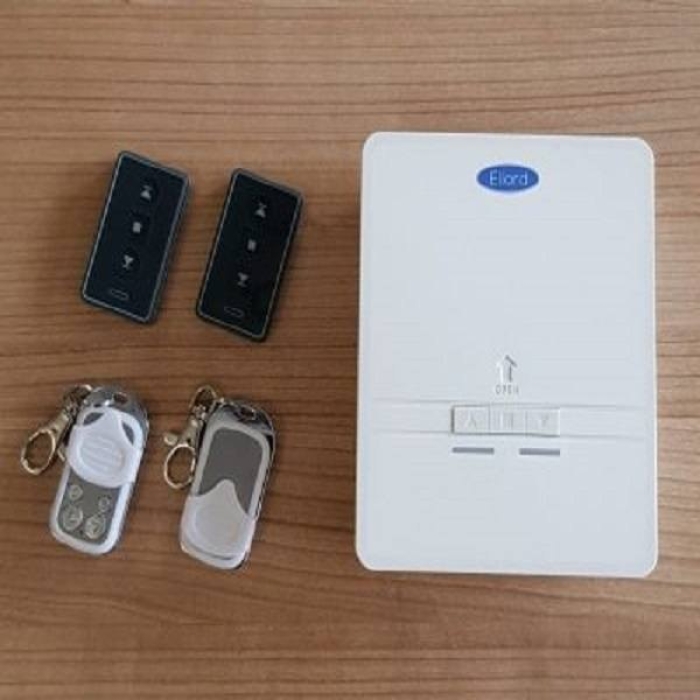

- Ellard Genesis Control Unit complete with 2 x handsets
- For use with roller shutters which have a tube motor with 4 wires in the motor cable (Live, Earth, Up, Down)
- Comes complete with two transmitters (This unit comes with 2 x Black Handsets)
- Has the operation buttons on the front of the unit
- 100 transmitters memory
- Has photocell option – can be bought separately
- Large visual power and signal indicators
- Aesthetically designed to blend into most surroundings
- Operating range 30m (approx) from handset
- Power supply 230v 50hz 1ph
- Max motor load of up to 500W
- Easy to wire in
- Unit is set to hold to run for closing of shutter (for safety reasons)
- Dedicated connections for safety break, external push button station/key switch and photocell
- Secure 5-way cable clamping system

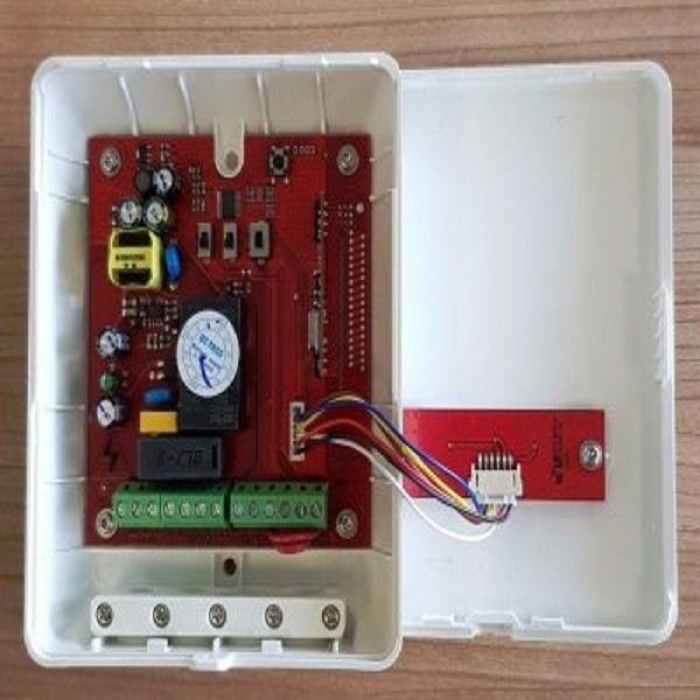

- Please see our related products area below for the same box but with whte handsets – please see 2nd image which shows both types of handset
- Comes complete with instructions and wiring info
