Use your measurements to find the best match. Measure the spring length over the coils, the outside diameter, number and thickness of coils, along with any distinguishing colours or features to find the closest match.
Henderson Premier Roller Spindles
£10.79 (INC VAT - £12.95)
Compton Short Garage Door Spring
£30.00 (INC VAT - £36.00)
Cardale Blue Spot Garage Door Spring for DOUBLE DOORS
£29.13 (INC VAT - £34.96)
Cardale replacement ‘Blue Spot’ spring fitted to Double width slideaway (retractable) garage doors including; Gemini, Sheraton, Jacobean and Edwardian Steel Doors (14′ x 6’6″ & 14’x7’0″), and GRP d…
Description
- Cardale replacement ‘Blue Spot’ spring fitted to Double width slideaway (retractable) garage doors including; Gemini, Sheraton, Jacobean and Edwardian Steel Doors (14′ x 6’6″ & 14’x7’0″), and GRP doors (10’7″ x 6’6″ / 14’6″ x 7’0″) manufactured before September 1998
- When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

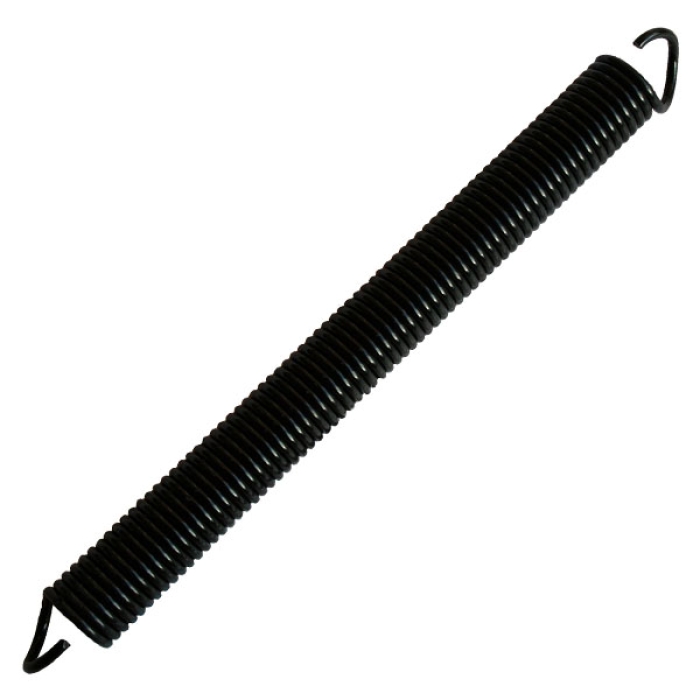

- The spring is identified by being black with a blue spot at one end of the spring
- As per Cardale part number AZSP3302L
- Suits lifting gear assembly ASZP3201LL & AZSP3201SL
- Wire Diameter 6.4mm
- Number of Coils 74
- Overall Diameter 50mm
- Length Excluding Hooks 483mm
- These springs replace the now obsolete green springs fitted to Cardale gear – if unsure please send us pictures of the back of your door as there are 2 types of obsolete green springs fitted to 2 different gear types.
