Cardale Autoglide MK2 Handset
£62.46 (INC VAT - £74.95)
1 x Cardale AZAA1007 handset – Spare or replacement keyfob remote control for cardale electric operator Garage door remote control transmitter for use with Cardale garage door operator Autoglide Mk…
Description
- 1 x Cardale AZAA1007 handset – Spare or replacement keyfob remote control for cardale electric operator
- Garage door remote control transmitter for use with Cardale garage door operator Autoglide Mk 2, Steelline & Thermaglide roller doors fitted prior to May 1998.
- Radio frequency: 418MHz
- Marked UKTX003 on the back, Cardale part numbers AZAA 1007 and AZAR 2003, the code is set by DIP switches, operating frequency 418 MHz.

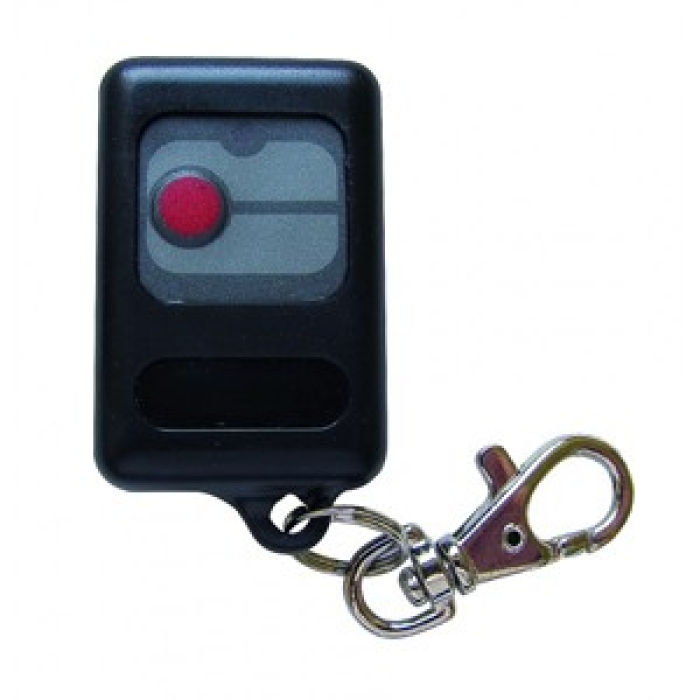

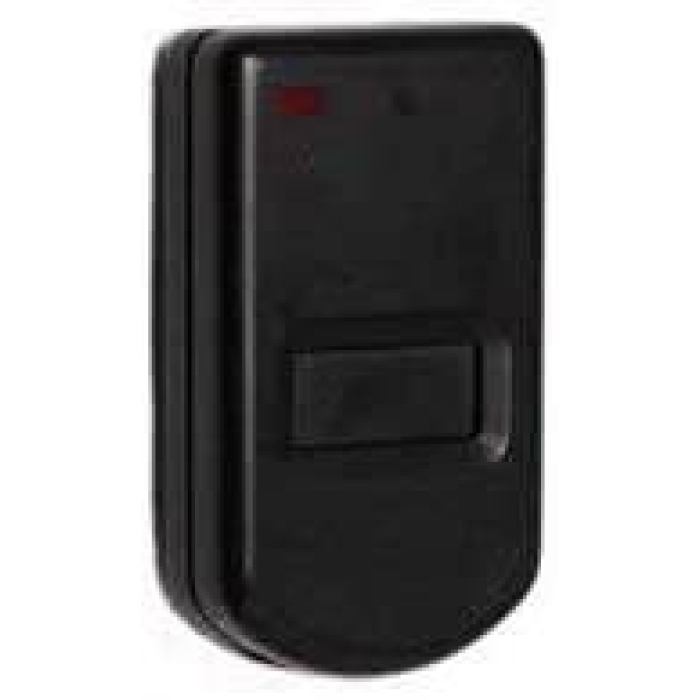

- The original UKTX003 has been replaced with the new version shown with the red button which is fully compatible (2nd image). We show the picture of the old version for identification purposes only.
- If your existing remote control does not resemble either of the pictures shown then this transmitter will not work with your garage door. The original UKTX003 has been replaced with the new version shown with the red button which is fully compatible.
- Battery & programming instructions included with this item – spare batteries available on our website and in the ‘additional products which may help area below
- PLEASE NOTE, THIS HANDSET HAS NOW BEEN DISCONTINUED, ONCE GONE WE HAVE NO MORE.
- SETTING YOUR TRANSMITTER CODE:
Before you can use your transmitter you must first set the security code so that it is the same as your existing transmitters.
1 .Remove the screw located on the back of your existing transmitter and carefully lift off the front, put the transmitter to one side, now remove the screw and front of the new transmitter.
2. Locate the row of 10 switches on your new transmitter and adjust their position using the tip of a ballpoint pen so they match your existing transmitter. NOTE: ‘ON’ is in the down position on the new transmitter, whilst ‘ON’ is in the up position on the original.
3. Check that you have set the switches correctly, fit the front and replace the screw.
Your transmitter is now ready to use
